CLEARAUDIO CONCEPT TONEARM
“Everything about the [Concept] tonearm—how it looks, its smooth cuing mechanism, its high-quality wiring and cartridge clips—speaks of Clearaudio’s attention to detail...” – Michael Fremer, Stereophile USA
ABOUT

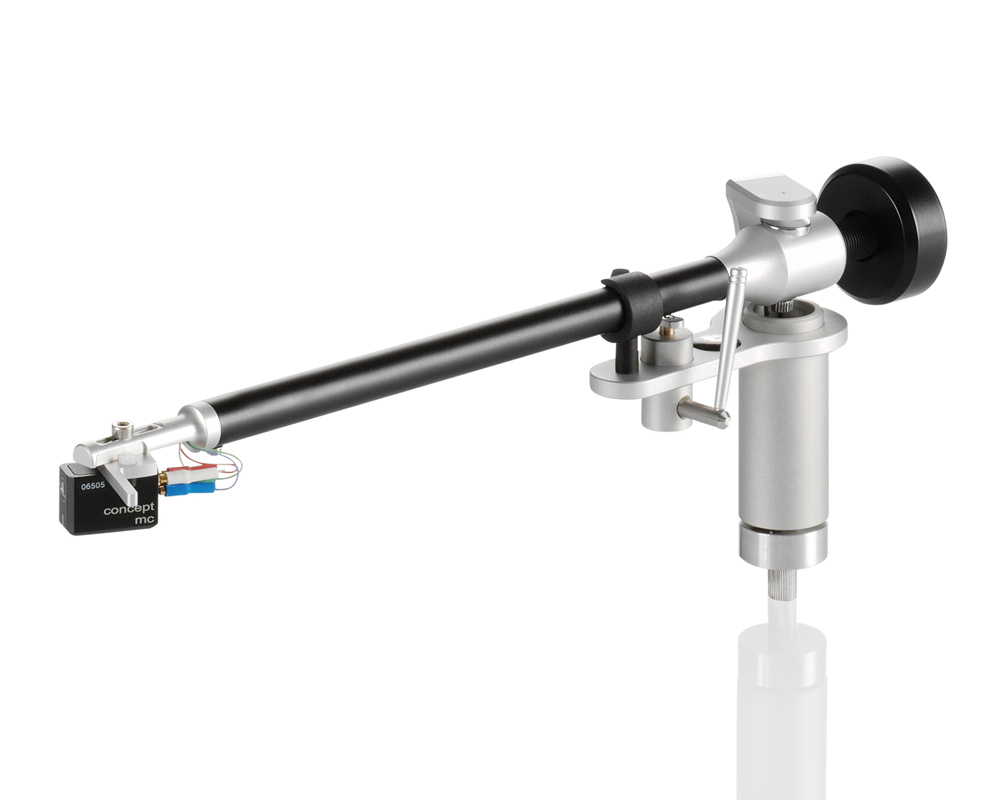

The Concept tonearm is Clearaudio’s most affordable tonearm, available only on the Concept turntable. It features our proven friction-free magnetic bearing technology, which eliminates bearing chatter and offers superior stability. The Concept tonearm's magnetic bearing allows the Concept turntable to be shipped with cartridge pre-installed and calibrated for plug-and-play convenience. The low mass, rigid aluminum arm tube uses a two-piece aluminum headshell with adjustable azimuth for accurate alignment of the phono cartridge and easy in-field replacement. Clearaudio’s hardwired Direct Wire tonearm cable assures signal integrity, ideal for all high-quality cartridges, including low-output moving coils.
SPECIFICATIONS
| Construction Details | Radial tonearm, with friction free magnetic bearing technology |
| Material | Aluminum (Silver), Tonearm Tube Made of Black Aluminum |
| Cartridge Balance Range | 2.5g - 17g |
| Zero Points | Inner: 66mm, Outer: 120.9mm |
| Overhang | 17.56mm |
| Total Length | 305mm |
| Effective Length | 239.56mm |
| Mounting Distance (Pivot to Spindle) | 222mm |
| Offset Angle | 24.16° |
| Wiring | 1.1m Clearaudio DirectWire Plus terminated with RCA |
| Effective Mass | 9g |
| Anti-skating Factor at a Radius of 62.9mm and 126.9mm | .43 |
| Mounting Style | Linn / Clearaudio |
| Weight | 444g (including counterweight) |
| Warranty | 2 years |
DOWNLOADS
| Concept Tonearm - User Manual |
