CLEARAUDIO CONCEPT AIR ACTIVE TURNTABLE
"ANALOG IN PLACE!"
![](/images/products/clearaudio-concept-active-black-with-satisfy-tonearm-and-concept-mc-cartridge-blk-hero730x600.png)
ABOUT
Due to supply chain issues, the Clearaudio Concept ACTIVE is currently DISCONTINUED.
As an alternative, we suggest using the Clearaudio Concept with a Smart Phono Headphone or Nano Headphone Phono Stage.
Clearaudio integrates high fidelity and all-in-one functionality to its most popular Concept AiR and Concept AiR Wood turntables. They call this model the Concept AiR Active and it’s fully loaded with all the goods. Choose from Clearaudio’s most popular MM & MC cartridges, the Concept MM, Concept MC and Maestro V2.1, to take advantage of the Active’s built-in, fully discrete, class-A phono preamp. Then decide whether you want to plug in your best set of headphones, play through your powered speakers, or your audio system. This is an impeccable combination of quality parts and features for those wanting exquisite sound and maximum versatility.
Features:

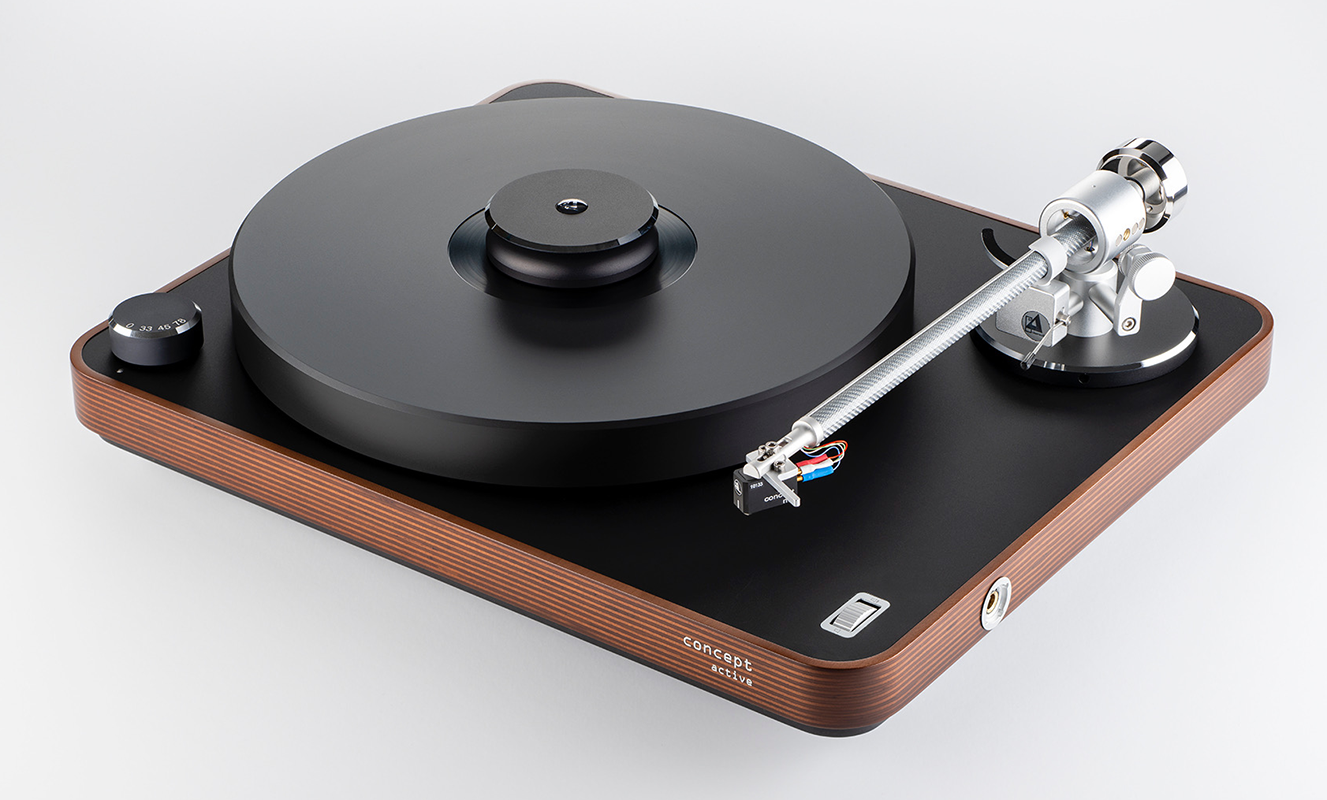

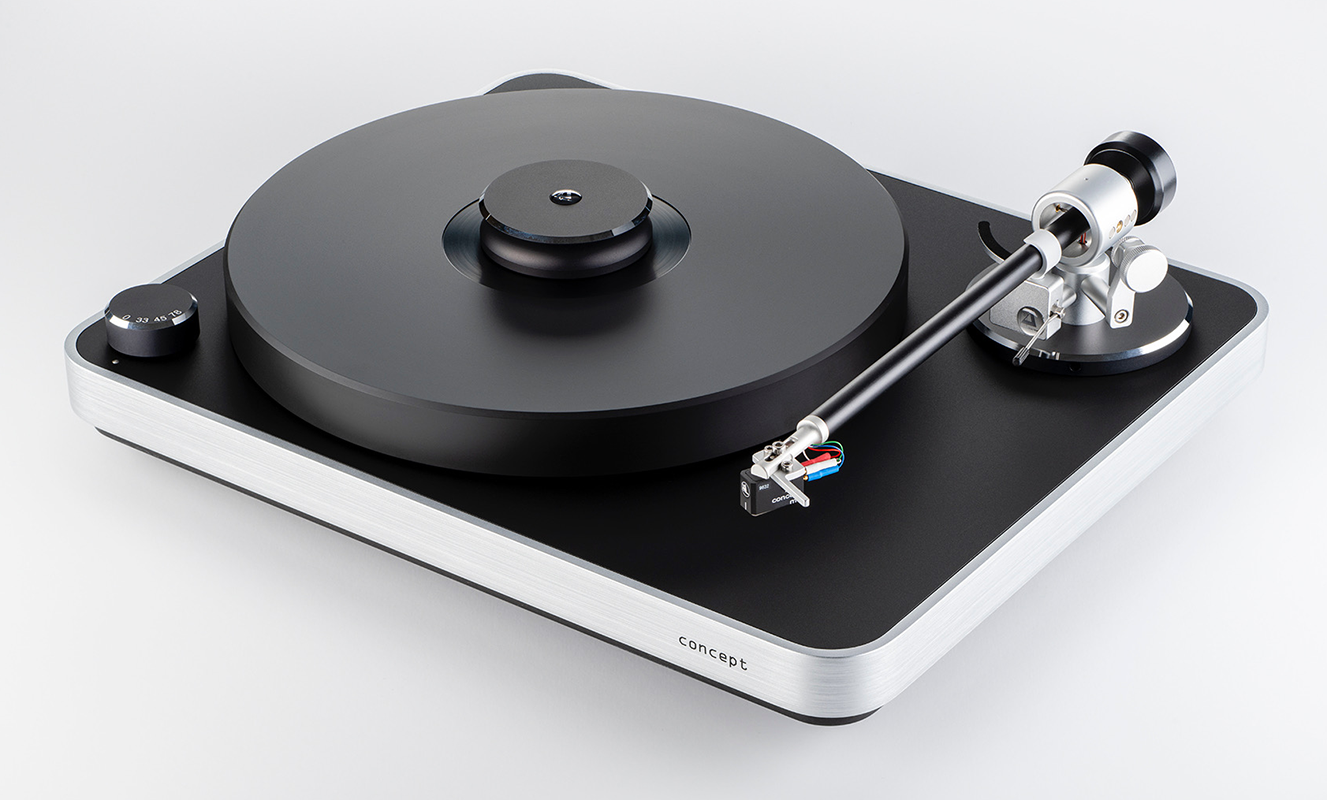

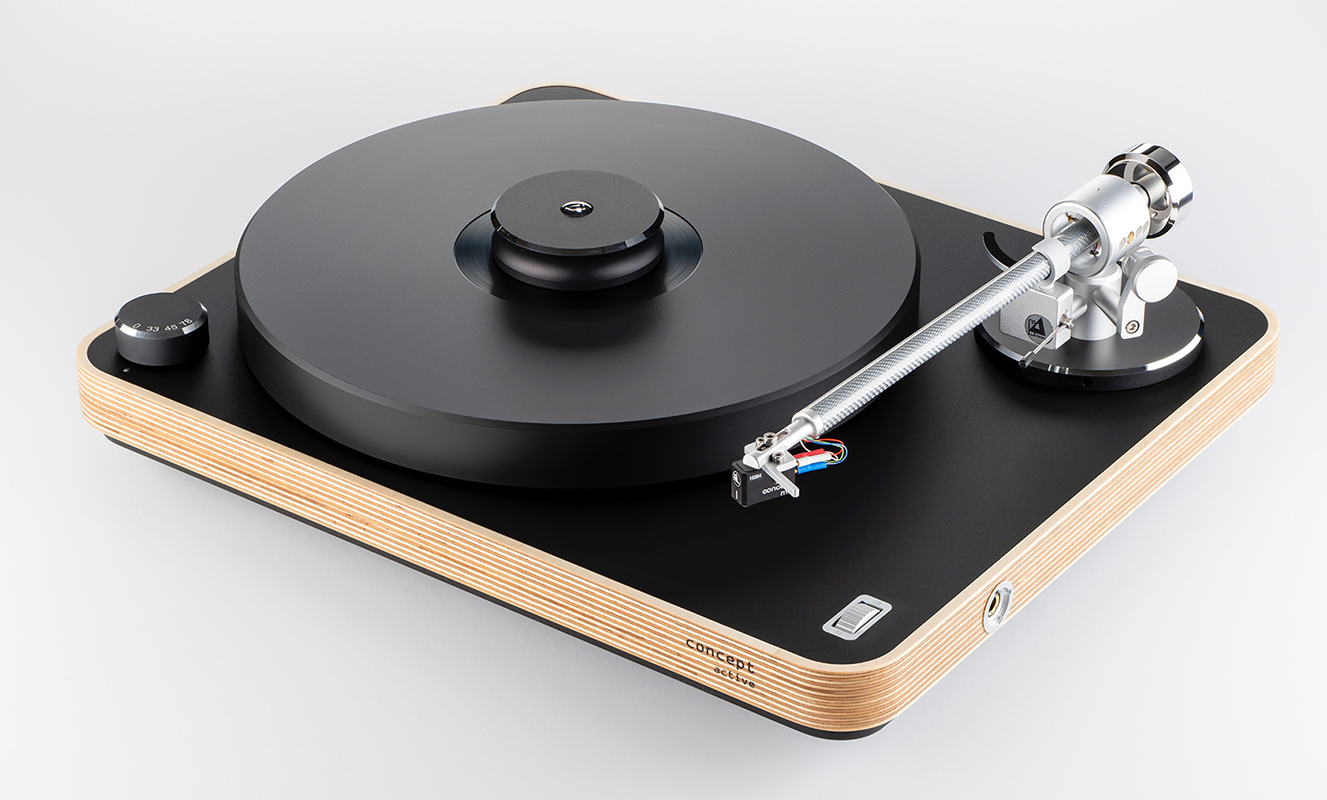

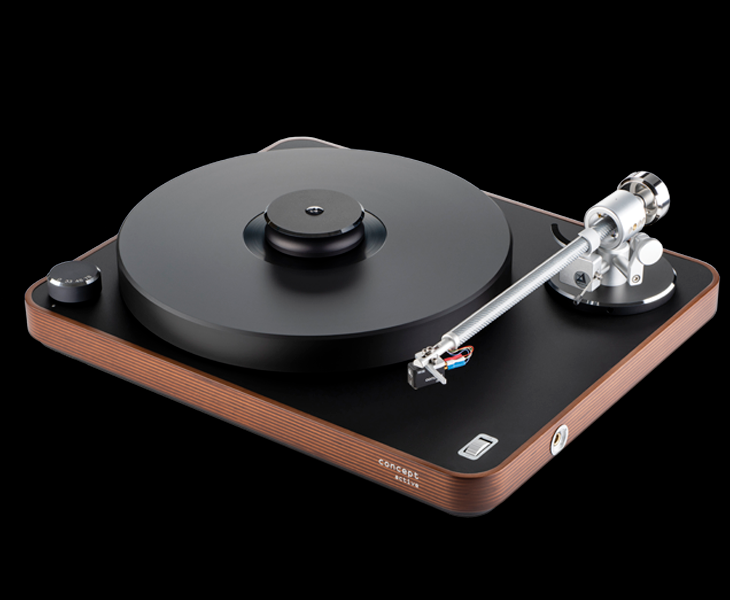

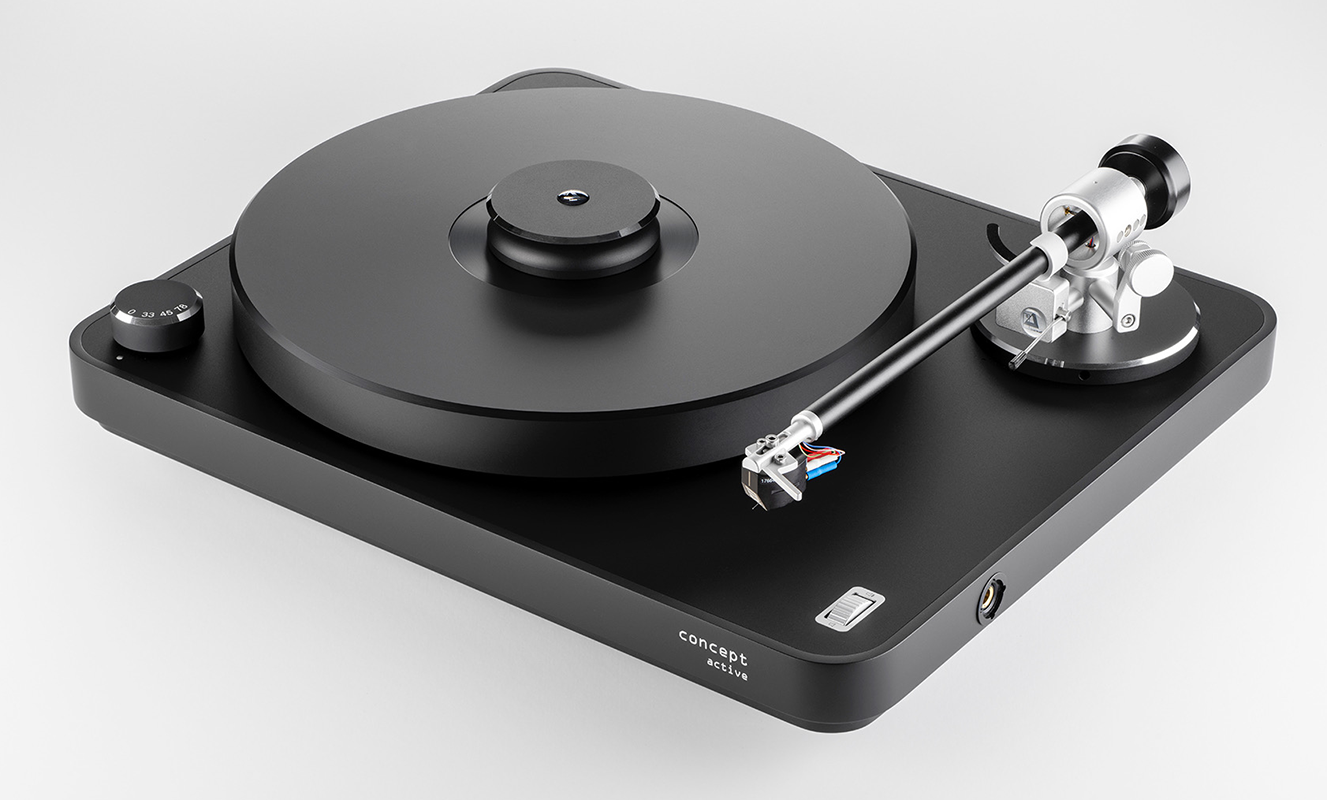

• Dark Wood, Light Wood, Black/Silver, or Black/Black
• Satisfy Black or Satisfy Carbon Tonearm
• Concept MC or Maestro V2.1 pre-mounted

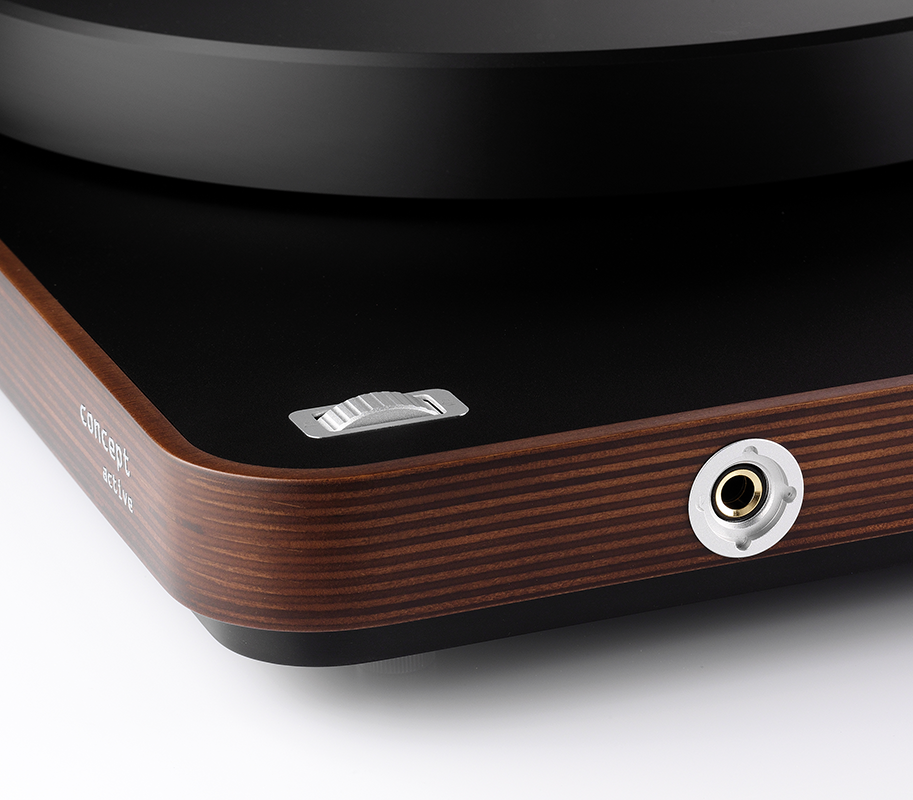

• Integral headphone amp & phono stage
• Class A circuitry
• Adjustable gain and loading
• Sub-sonic filter
• Bypass output
SPECIFICATIONS
Phono Preamp | Fully discrete Class-A circuit for MM & MC cartridges with switchable subsonic filter |
Phono Preamp Gain | low 40 db / mid 45 dB / high ~56 dB |
Input Loading | 47 kΩ (MM mode) / 110 Ω (MC mode) |

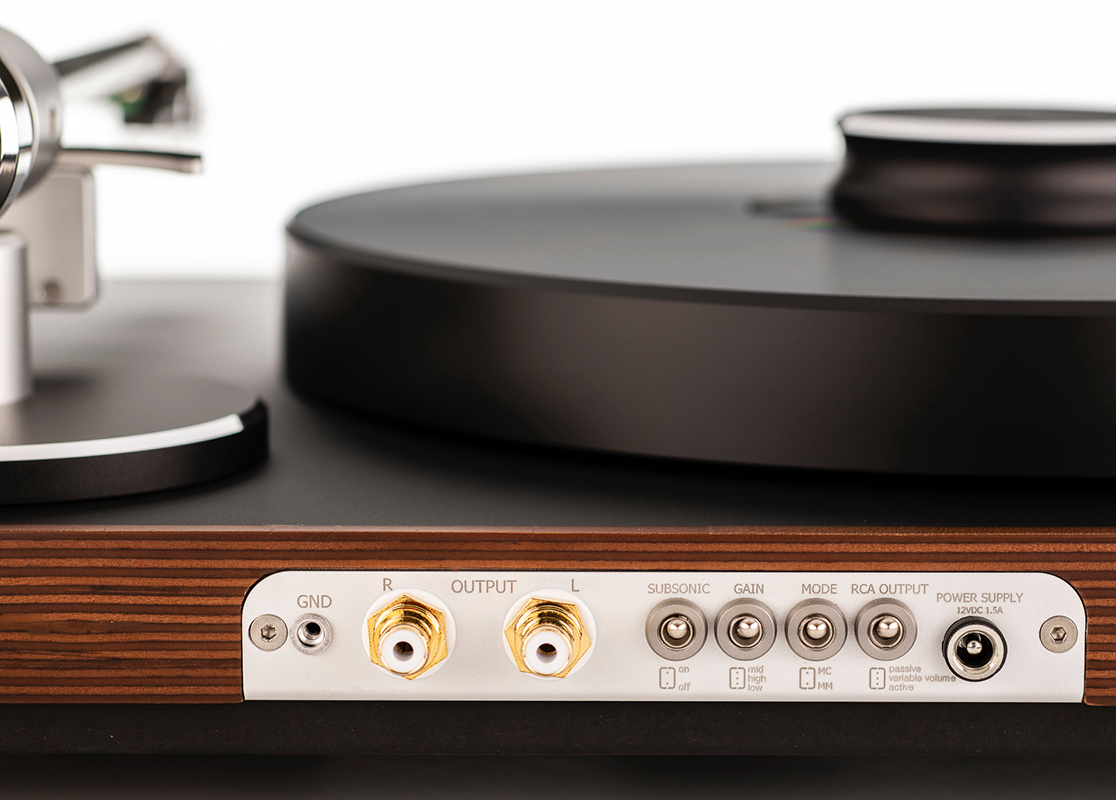

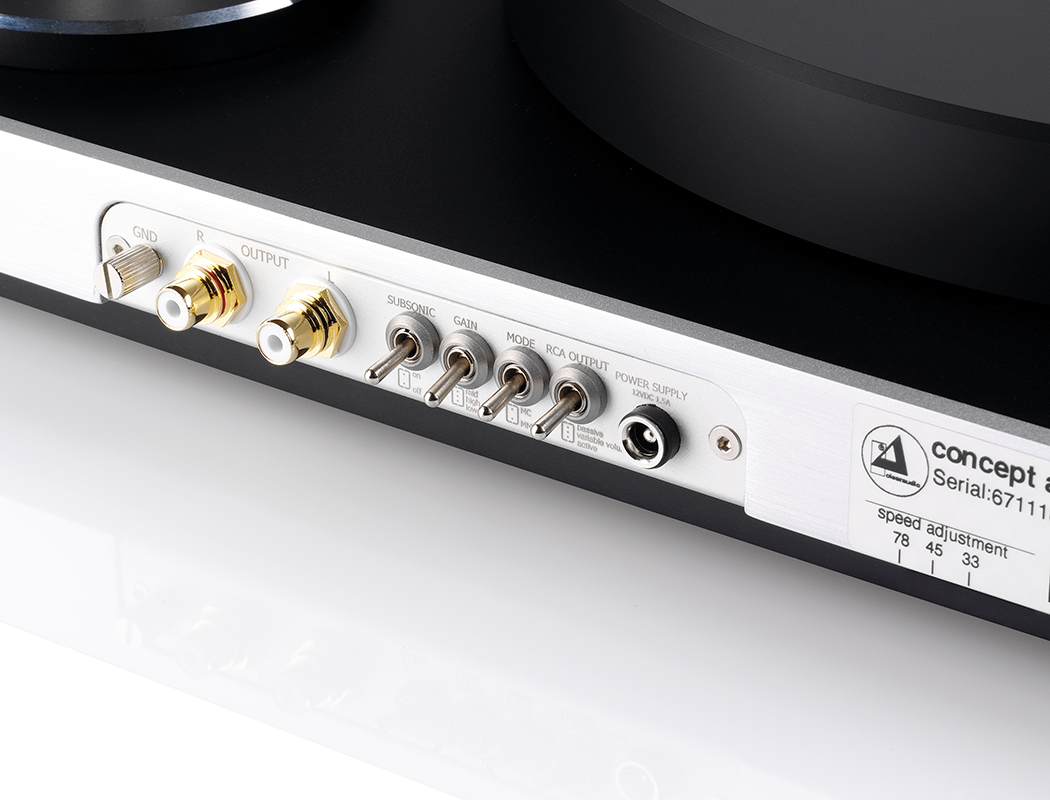

RCA Output | Gold plated connections with Passive, Variable Volume, and Active output options |
Speed ranges | 33 1/3, 45, and 78 RPM, Electronic Speed Change |
Motor | Decoupled DC motor with low-noise bearings |
Bearing | Polished and tempered steel shaft in a sintered bronze bushing, runs on a mirror of Teflon |
Platter | CNC-machined POM (polyoxymethylene), 30 mm thickness |
Speed accuracy | ± 0.5 % |
Weight | 17lb |
Dimensions | 16.54" x 13.78" x 5.51" |
Warranty | 2 years |
DOWNLOADS
Concept Active Manual | |
TAS Concept Active Review | |
Concept Active TAS Cover Photo | jpg |
TAS Cover Image | jpg |
